SN34 Tankmätar interface

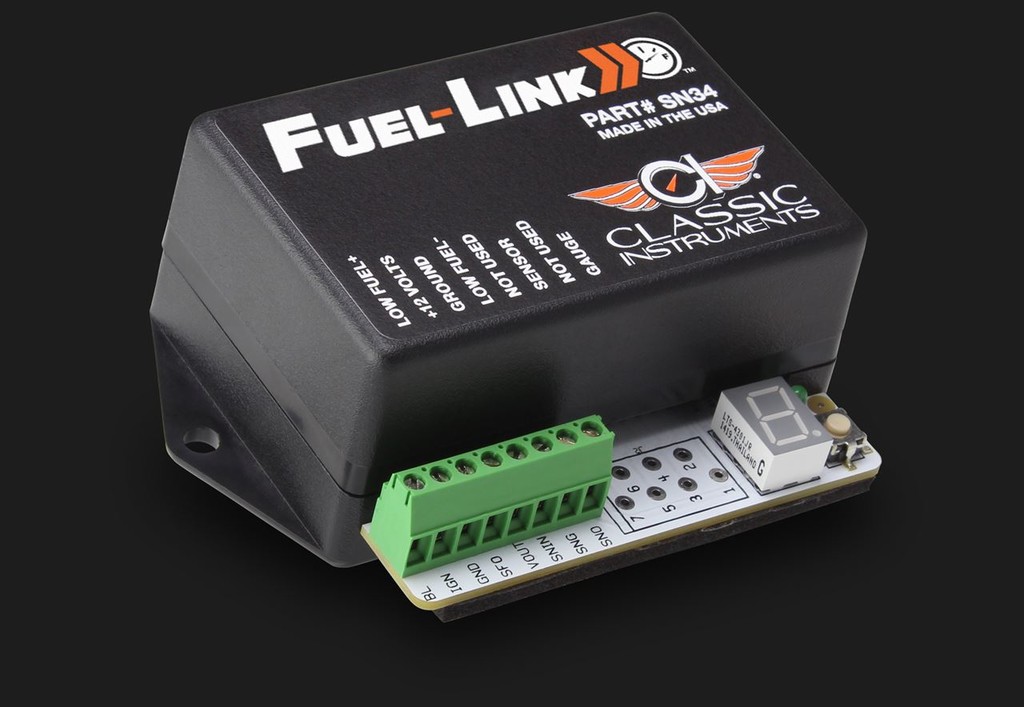

Classic instruments Fuel link interface
(Objektnr. SN34)
Tankmätar interface mellan givare och mätare .
Löser dina tankmätarproblem när givaren inte stämmer med ohmtalet mot mätaren.
The Fuel Link interface is the problem-solver between fuel senders and gauges to correct ohm mismatch and erratic movement due to fuel slosh.
Compatible preset fuel sender ohm ranges (empty to full)
1. 240-33, standard aftermarket
2. 0-90, GM Type ’66 and later
3. 0-30, GM Type ’64 and earlier
4. 16-158, Ford Type ’87 and later
5. 75-10, Ford type ’86 and earlier
6. 90-0, Toyota and Nissan ’85 and later
7. 40-250, Late model GM
8. 10-180 VDO
Key Features
• Made in the USA
• User can calibrate a custom ohm range (between 0-350 ohms)
• The gauge is calibrated at every 1/4 tank reading, ensuring accurate readings
• The interface is compatible with nearly any short sweet fuel gauge and fuel sender combination
• NOT compatible with modern micro-processor controlled fuel gauges (such as digital readout gauges and gauges
whose pointers sweep more than 90 degrees from full to empty).
• Easy screw terminal wire connections
• Compact size, 3" x 2" x 1.5", with mounting holes for under-dash installation
• On-board pushbutton with LED readout for calibration
• Low Fuel Light trigger at 1/8 tank (works with a LED or incandescent bulb)
